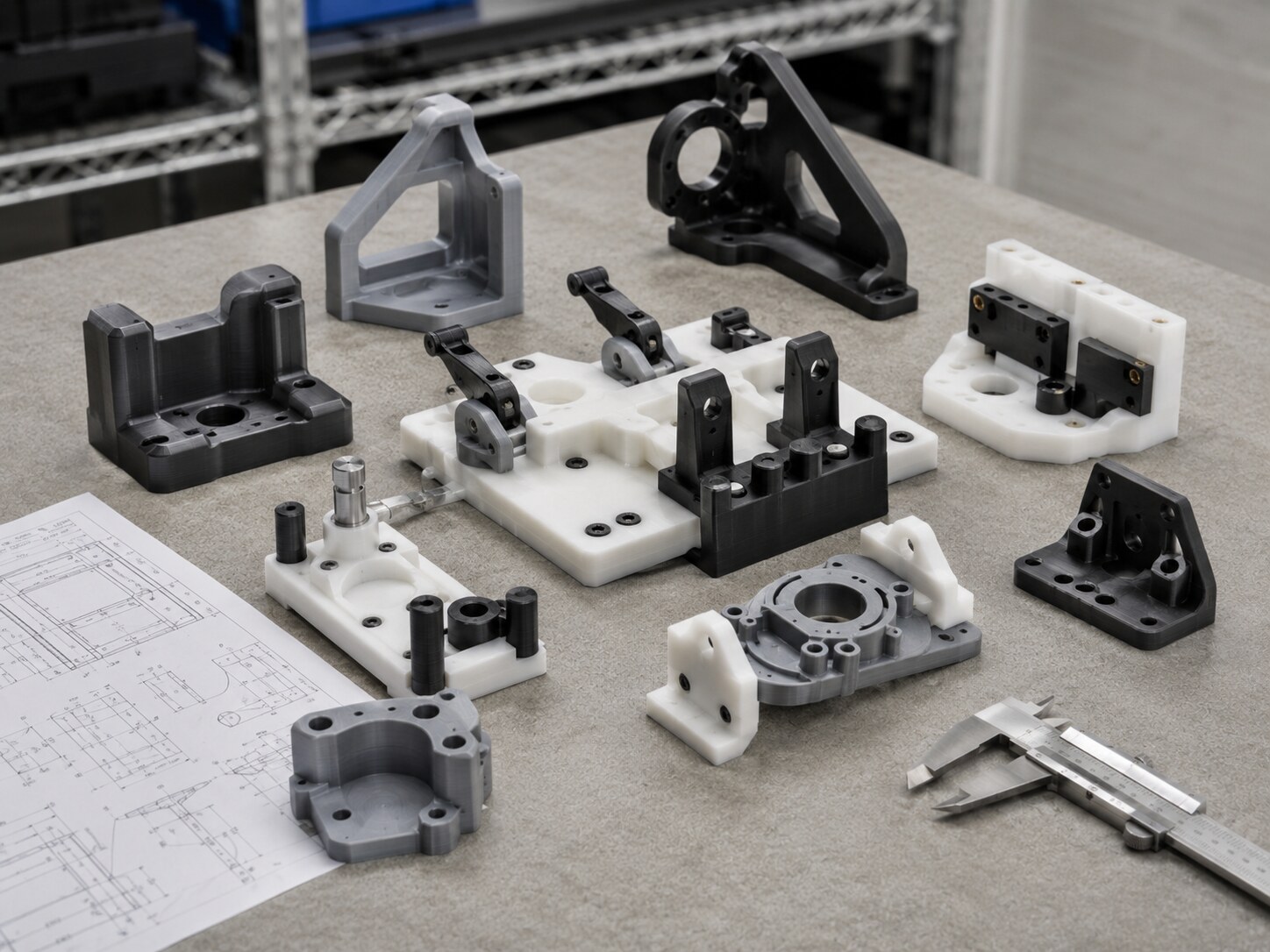

3D Printed Fixtures We Supply
WEKDEN supports 3D printed fixtures and jigs for checking, assembly, positioning, holding, inspection support and small production assistance.
Prototype and Low-Volume Custom Parts Support
WEKDEN supports rapid prototypes, functional samples, fixtures and low-volume custom parts based on 3D files, drawings or samples.
Checking Fixtures
Fixtures for checking fit, position, shape, hole location and assembly consistency.
Assembly Jigs
Jigs used to help position parts during assembly, bonding, drilling or simple production work.

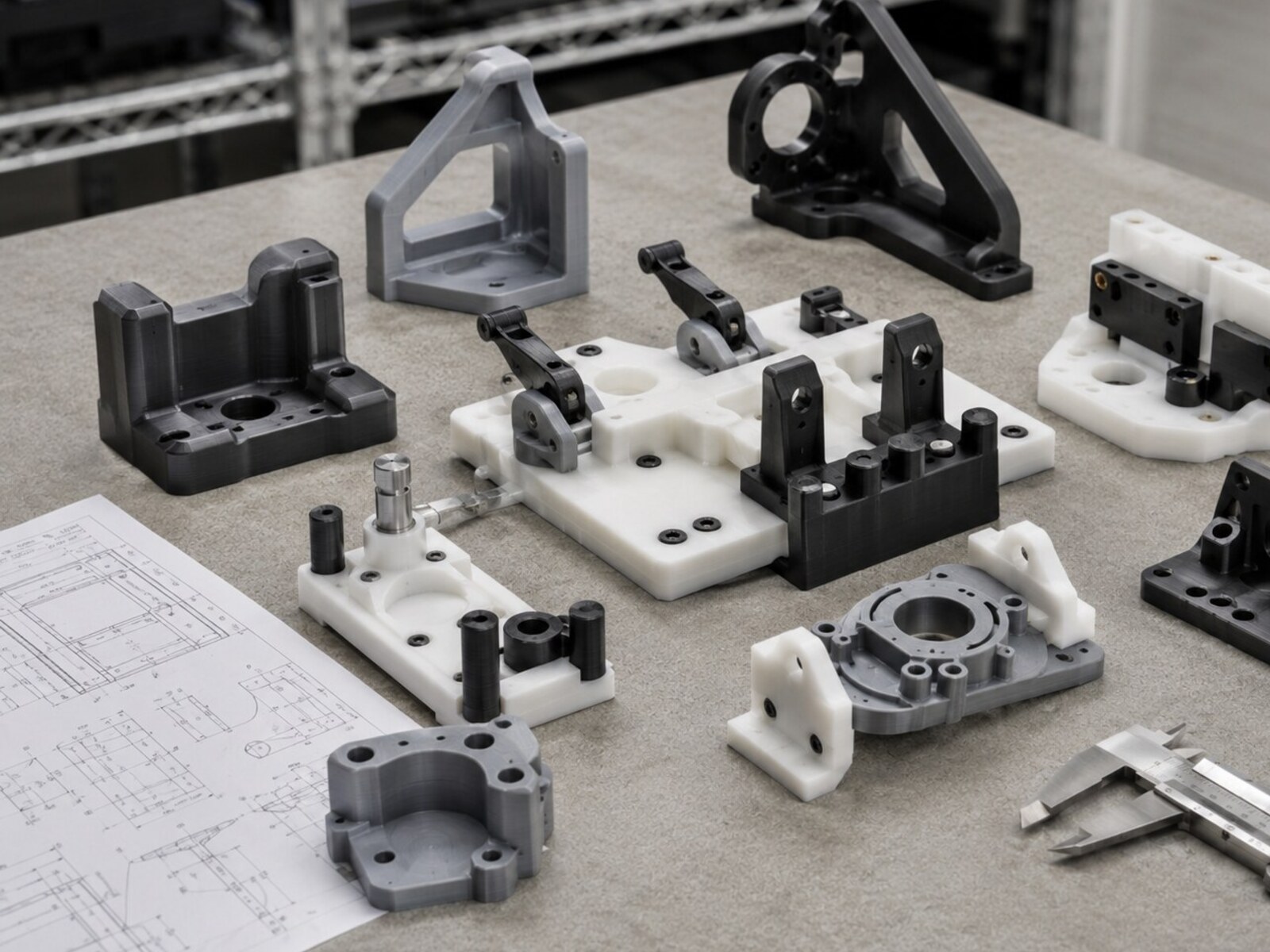

Positioning Tools
Custom positioning tools for locating parts, guiding installation or supporting repeatable assembly.

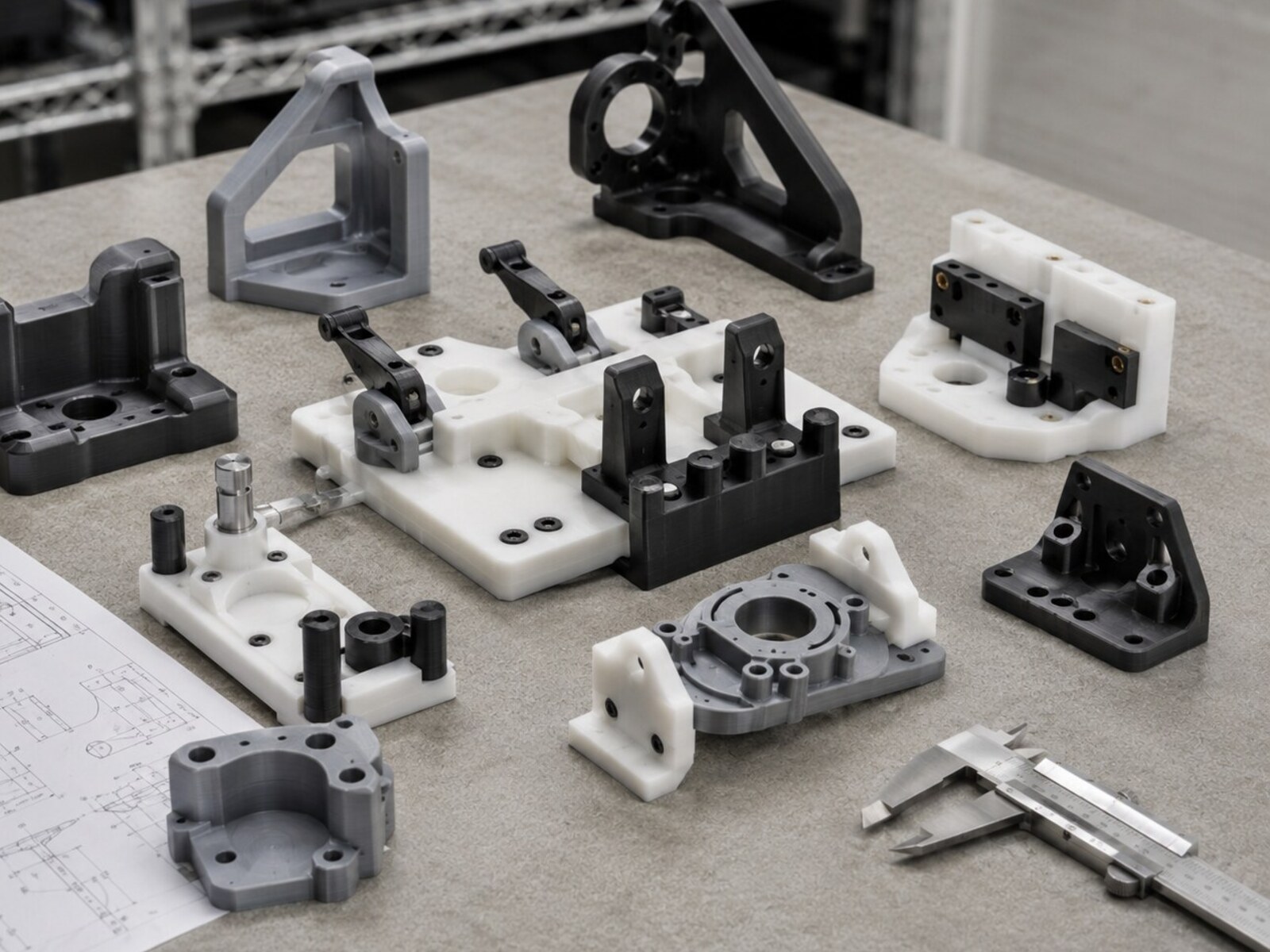

Holding Fixtures
Holding fixtures and support blocks for light-duty workholding, testing or assembly support.
Inspection Aids
Simple inspection aids for visual checking, positioning, orientation and repeatable comparison.
Custom Workholding Parts
Custom workholding parts for low-volume production support, trial assembly and engineering use.
Common Materials
Fixture material should match required strength, stability, wear resistance, accuracy and working environment.
Manufacturing Processes We Can Support
Key Drawing & Design Points
- Part positioning points, contact surfaces and repeatability requirements should be defined.
- Load, clamping method, installation direction and working environment should be clarified.
- High-precision or high-load fixtures may require CNC machining instead of 3D printing.
- Provide matching part drawings or samples if available.
- Inspection or assembly workflow helps confirm fixture design.
Post-Processing & Finishing
Typical Applications

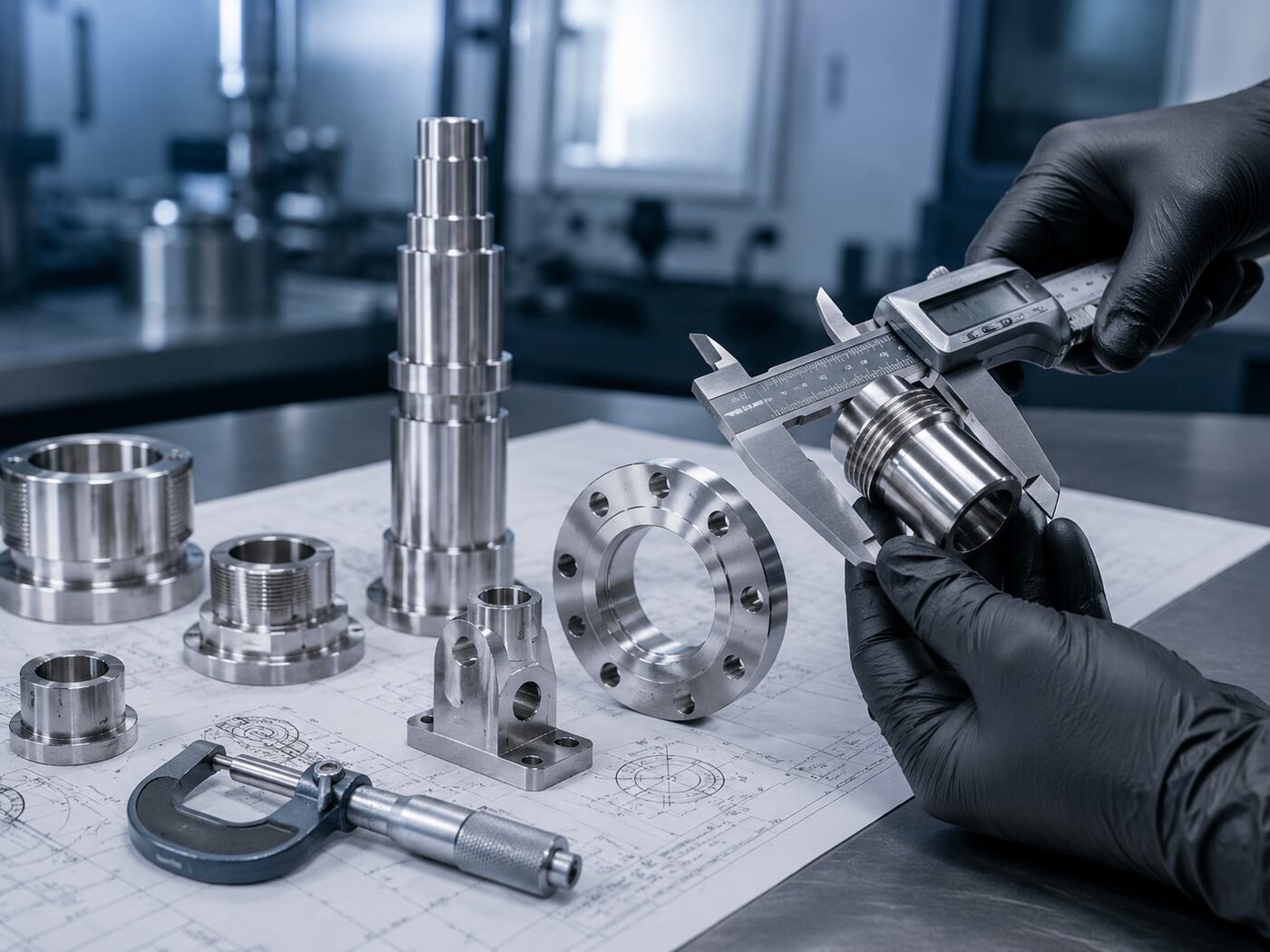

Quality Check Before Shipment
- Dimension and appearance checking according to confirmed project requirements.
- Fit, assembly, hole, slot, wall thickness and functional surface review when required.
- Surface condition, burr, deformation, crack, visible finish and packing confirmation before shipment.
- Material, quantity and product specification confirmation according to order requirements.
- Inspection photos or basic measurement records can be provided when requested before shipment.
What to Send for Quotation
- 3D CAD file, 2D drawing, physical sample or clear photos with marked dimensions.
- Material preference, function, strength, appearance and post-processing requirements.
- Estimated quantity, target delivery time and destination country.
- Application environment, assembly position or matching part information if available.
Frequently Asked Questions
Can you make parts from 3D files?
Yes. We can review 3D CAD files, drawings, samples or dimensioned photos before quotation.
Do you support low-volume orders?
Yes. We can support prototypes, functional samples, test parts and low-volume custom production.
Can you help choose the process?
Yes. We can review structure, function, material, strength and appearance requirements before recommending a practical process.
What affects the quotation most?
Part size, material, printing method, structure, post-processing, quantity, inspection requirements and delivery time are the main factors.
Need 3D Printed Fixtures?
Send us 3D files, drawings, samples or project requirements. We will review the structure, material, process, function and quantity before providing a practical quotation.
Send Drawing for Quote
