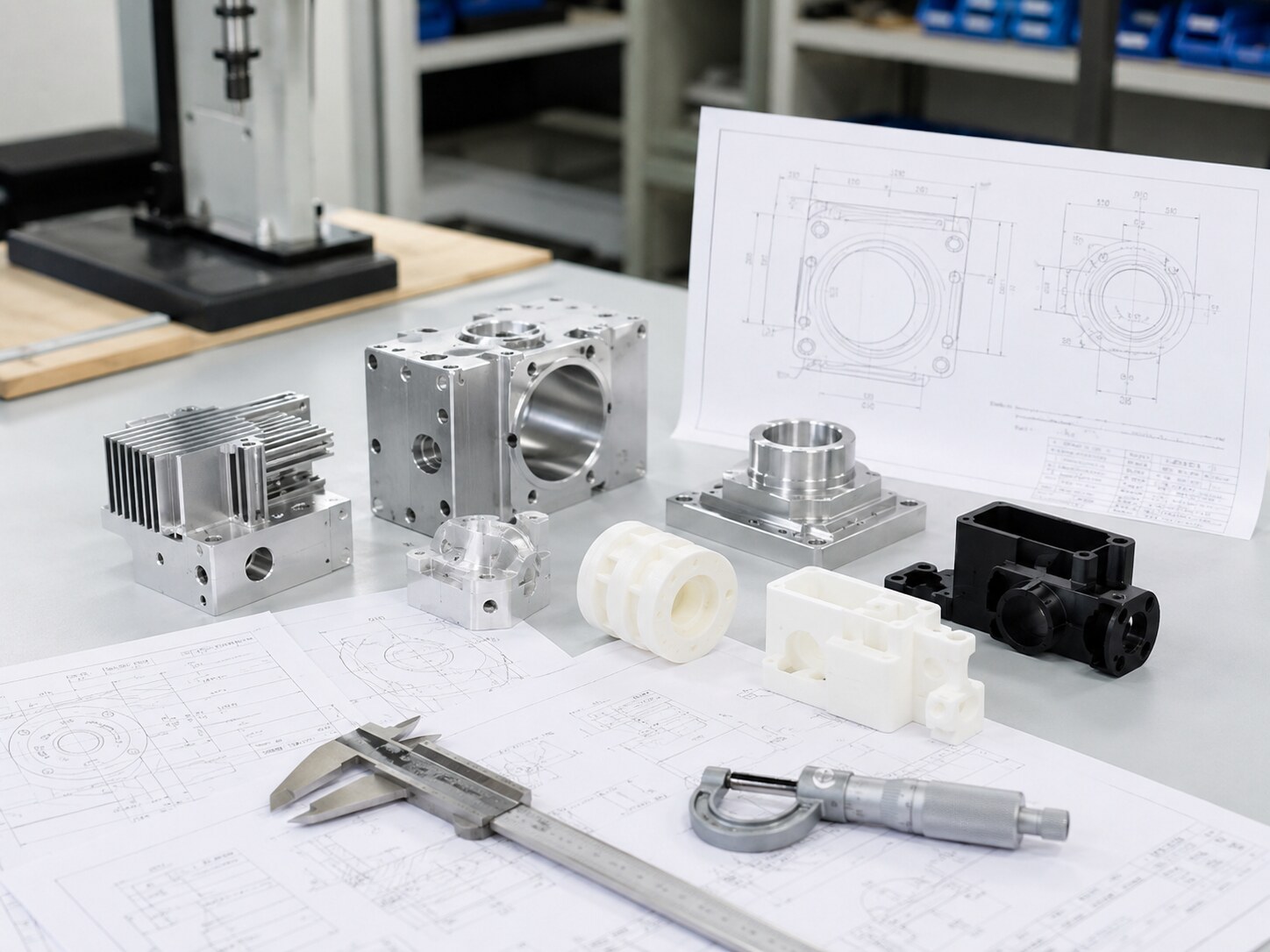

Drawing-Based Custom Manufacturing Support
WEKDEN helps global buyers develop and source custom mechanical parts according to drawings, CAD files, samples or project requirements. We focus on practical drawing review, material selection, machining process confirmation, sample development, small-batch production and quality checking before shipment.
From Drawing Review to Custom Manufacturing
WEKDEN supports drawing review, material confirmation, sample development, small-batch production, inspection and shipment coordination.
2D Drawing Review
We review dimensions, tolerance requirements, material, surface treatment, thread features, assembly areas and critical functional points before quotation.
3D CAD File Review
We can review STEP, STP, IGES or similar 3D files to understand structure, machining difficulty and production feasibility.
Sample-Based Customization
When formal drawings are not available, we can review physical samples, dimensioned photos or sketches before confirming the quotation path.
Process Selection
We help match the project with CNC turning, CNC milling, 3D printing, surface treatment, small-batch production or coordinated manufacturing.
Prototype & Trial Order
We can support prototype parts, trial samples and low-volume production before larger batch orders.
Production Coordination
For multi-category mechanical parts, we can coordinate material, machining, finishing, inspection and packing according to order requirements.

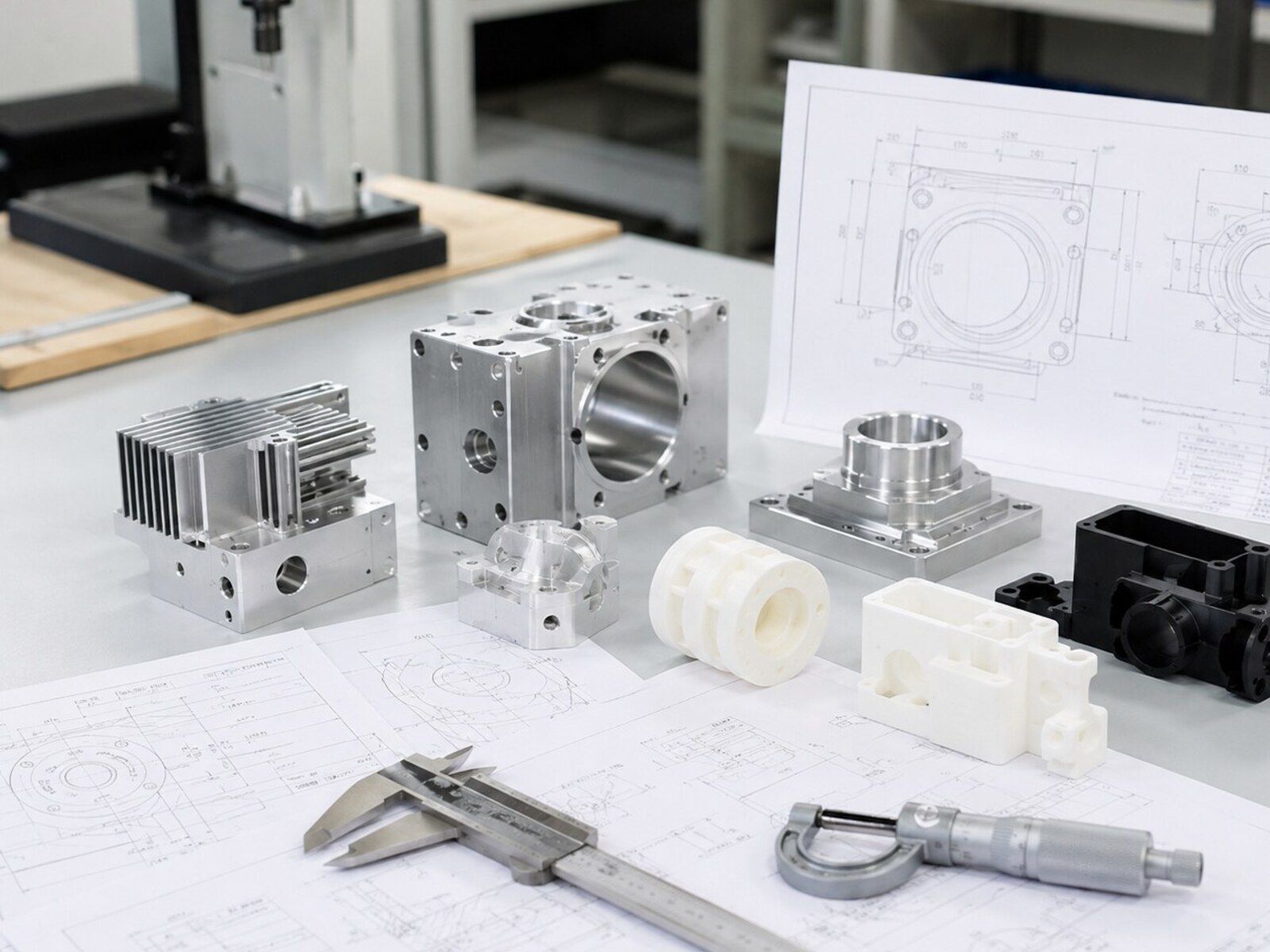

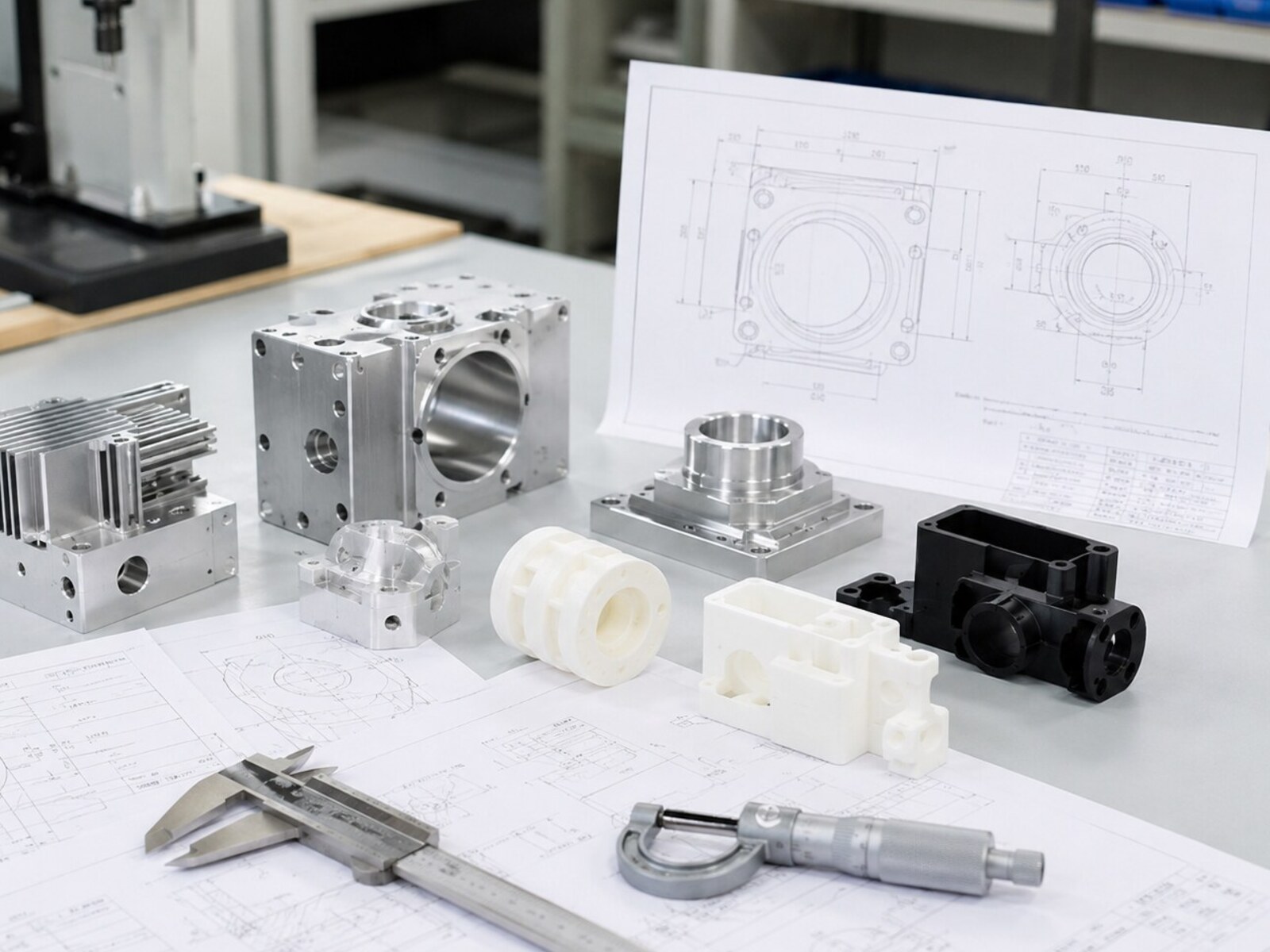

Parts We Can Support
Common Materials
Material can be selected according to strength, corrosion resistance, weight, cost, machining method and final application environment.
What We Check Before Quotation
- Whether the drawing has enough information for material, process, tolerance and surface treatment confirmation.
- Whether critical dimensions, threads, holes, grooves, fits and assembly positions are clearly marked.
- Whether the tolerance is suitable for the function and whether it may increase machining cost unnecessarily.
- Whether the material and surface treatment match the working environment and appearance requirements.
- Whether the quantity, delivery time and inspection requirements are suitable for prototype, trial order or batch production.
Manufacturing Processes We Can Coordinate
Surface Treatment Options
Project Workflow
- Step 1: Send drawings, CAD files, samples, photos or technical requirements.
- Step 2: Confirm material, tolerance, surface treatment, quantity and application requirements.
- Step 3: Review manufacturing process, cost factors, sample feasibility and delivery time.
- Step 4: Provide quotation and confirm sample or production details.
- Step 5: Arrange manufacturing, inspection, packing and shipment coordination.

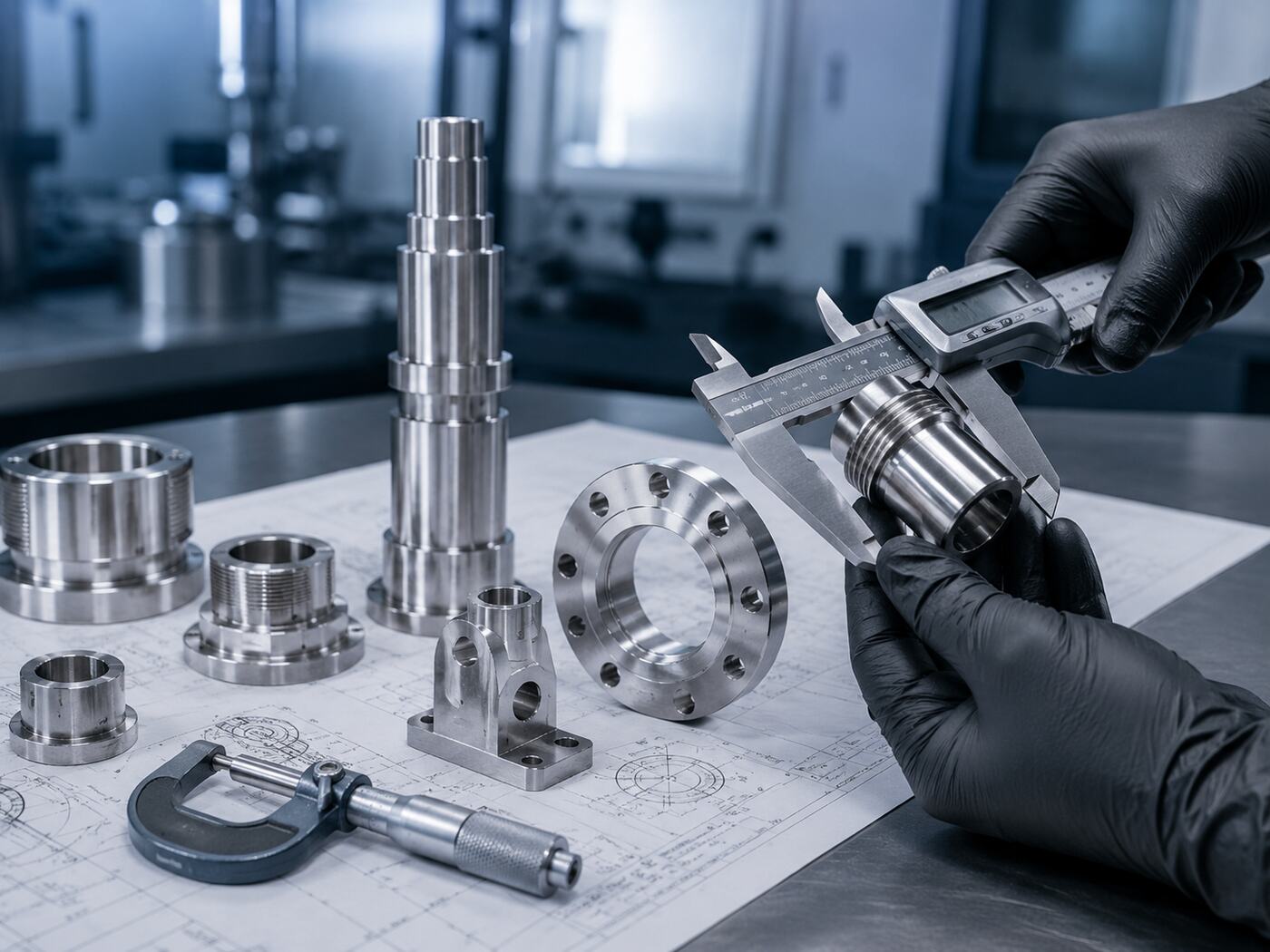

Quality Check Before Shipment
- Dimension inspection according to drawings and critical functional requirements.
- Thread, hole, fit, assembly surface and appearance checking when required.
- Surface treatment, burr, chamfer, visible finish and packing confirmation before shipment.
- Material, quantity and product specification confirmation according to the order requirements.
- Inspection photos or basic measurement records can be provided when requested before shipment.
What to Send for Quotation
- 2D drawing, 3D model, physical sample or clear photos with marked dimensions.
- Material grade, surface treatment, tolerance and key functional requirements.
- Estimated quantity, target delivery time and destination country.
- Application environment, assembly position, matching part information or existing problem to solve.
Frequently Asked Questions
Can you quote without a formal drawing?
Yes. We can review samples, sketches or dimensioned photos first, but formal drawings or confirmed key dimensions help us quote more accurately.
Can you help improve the design?
Yes. We can provide practical feedback on material, process, tolerance, surface treatment and manufacturability before production.
Do you support small-batch custom projects?
Yes. We can support prototypes, trial samples, repair parts, replacement parts and small-batch OEM/ODM manufacturing.
What affects quotation most?
Material, structure, tolerance, machining time, surface treatment, quantity, inspection requirement and delivery time are the main quotation factors.
Need Drawing-Based Custom Manufacturing?
Send us drawings, CAD files, samples or project requirements. We will review the structure, material, process, tolerance, surface treatment and quantity before providing a practical quotation.
Send Drawing for Quote
