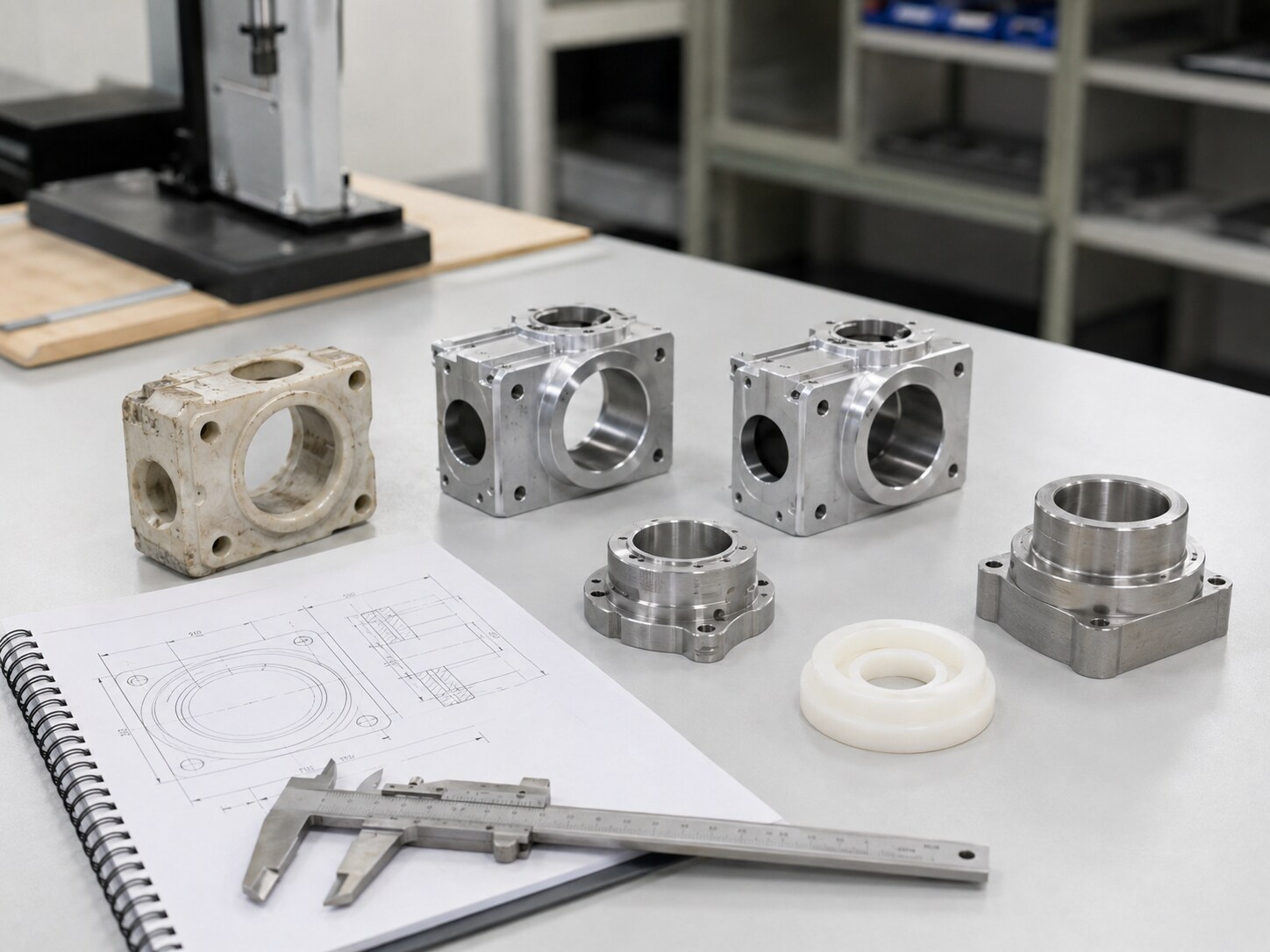

Sample-Based Customization Support
WEKDEN supports sample-based customization when formal drawings are not available. We can review physical samples, photos and dimensions to support replacement, repair and custom manufacturing projects.
From Drawing Review to Custom Manufacturing
WEKDEN supports drawing review, material confirmation, sample development, small-batch production, inspection and shipment coordination.

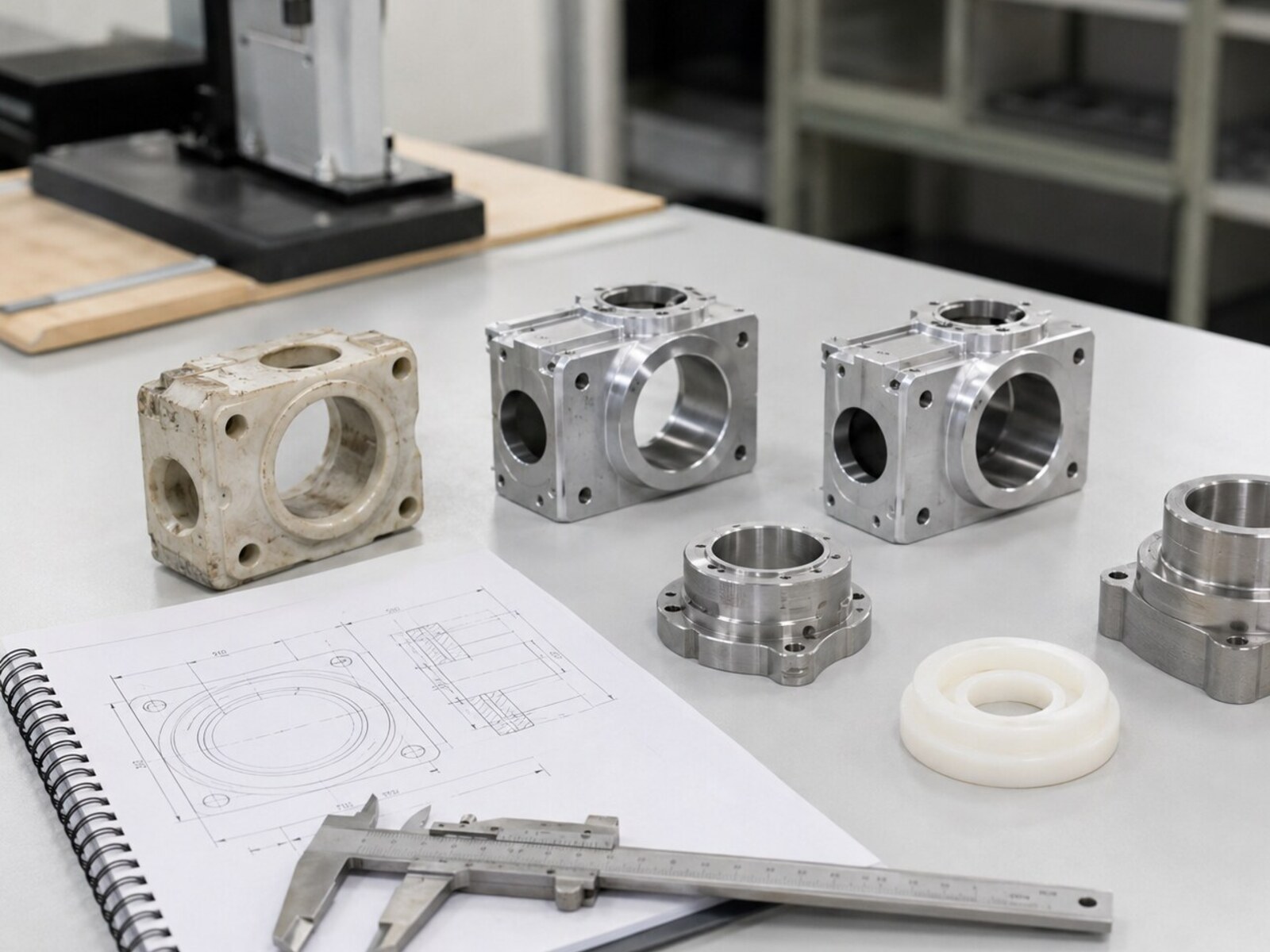

Sample-based Replacement Parts
Custom replacement parts made by reviewing existing samples, key dimensions and application requirements.

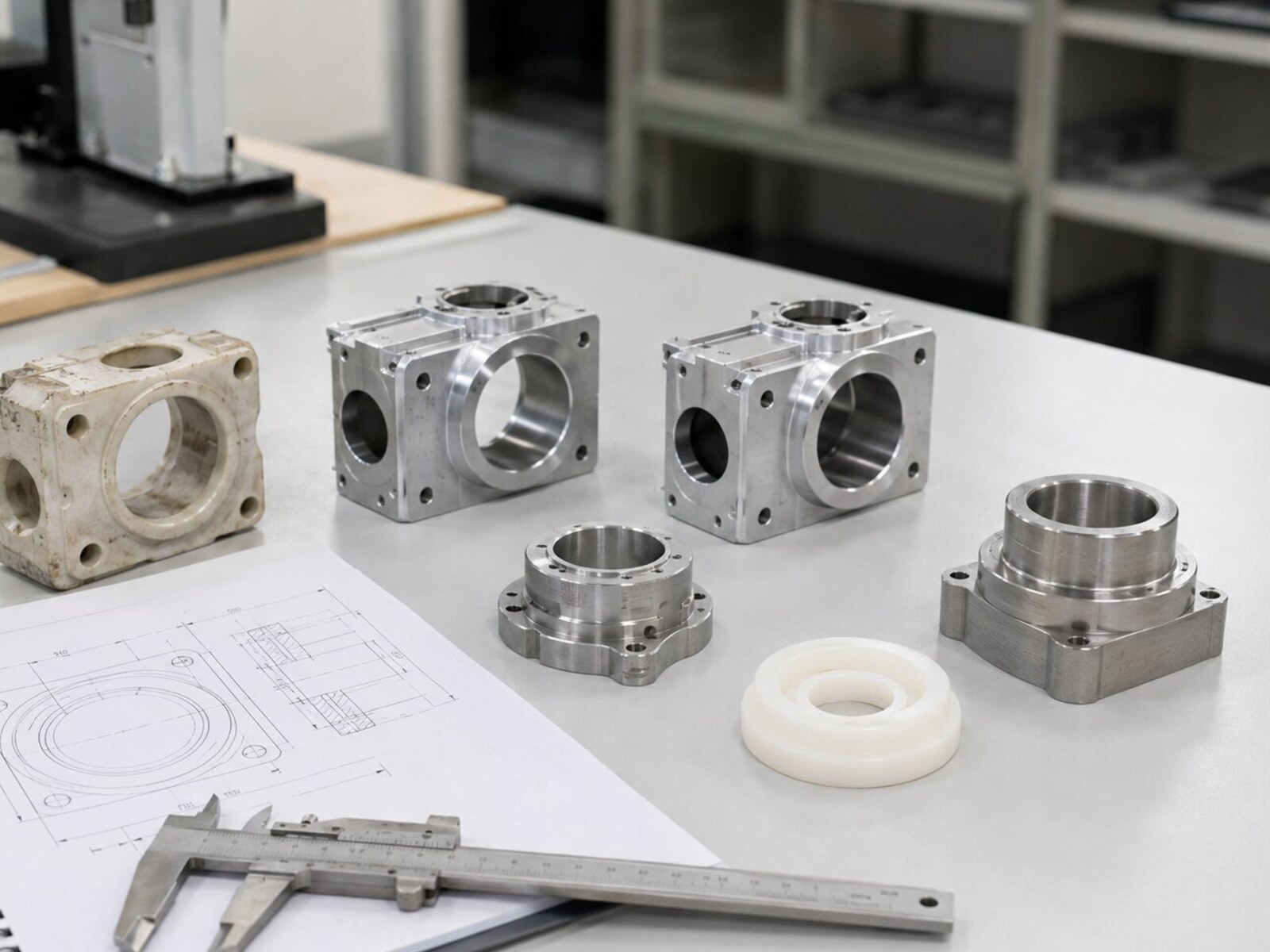

Reverse Engineered Parts
Parts developed from samples, photos or measured dimensions when original drawings are unavailable.
Copied Components
Sample-based components for repair, restoration, testing or small-batch replacement projects.
Improved Sample Parts
Existing parts can be reviewed for material, structure, process or surface treatment improvement.
Custom Repair Parts
Repair-focused components for equipment maintenance, replacement and non-standard assembly needs.
Batch Sample Parts
Small-batch production after sample confirmation, dimension review and quotation approval.
Common Materials
Material can be selected according to the original sample, working condition, strength, corrosion resistance and cost.
Manufacturing Processes We Can Support
Key Drawing & Tolerance Points
- Provide clear photos, main dimensions and application information when drawings are not available.
- Critical fit, thread, hole, groove and assembly dimensions should be confirmed carefully.
- Material and surface treatment can be matched to the original sample or improved based on use.
- Reverse engineering may require tolerance confirmation before production.
- A trial sample is recommended before batch production when function is critical.
Surface Treatment & Finishing
Typical Applications

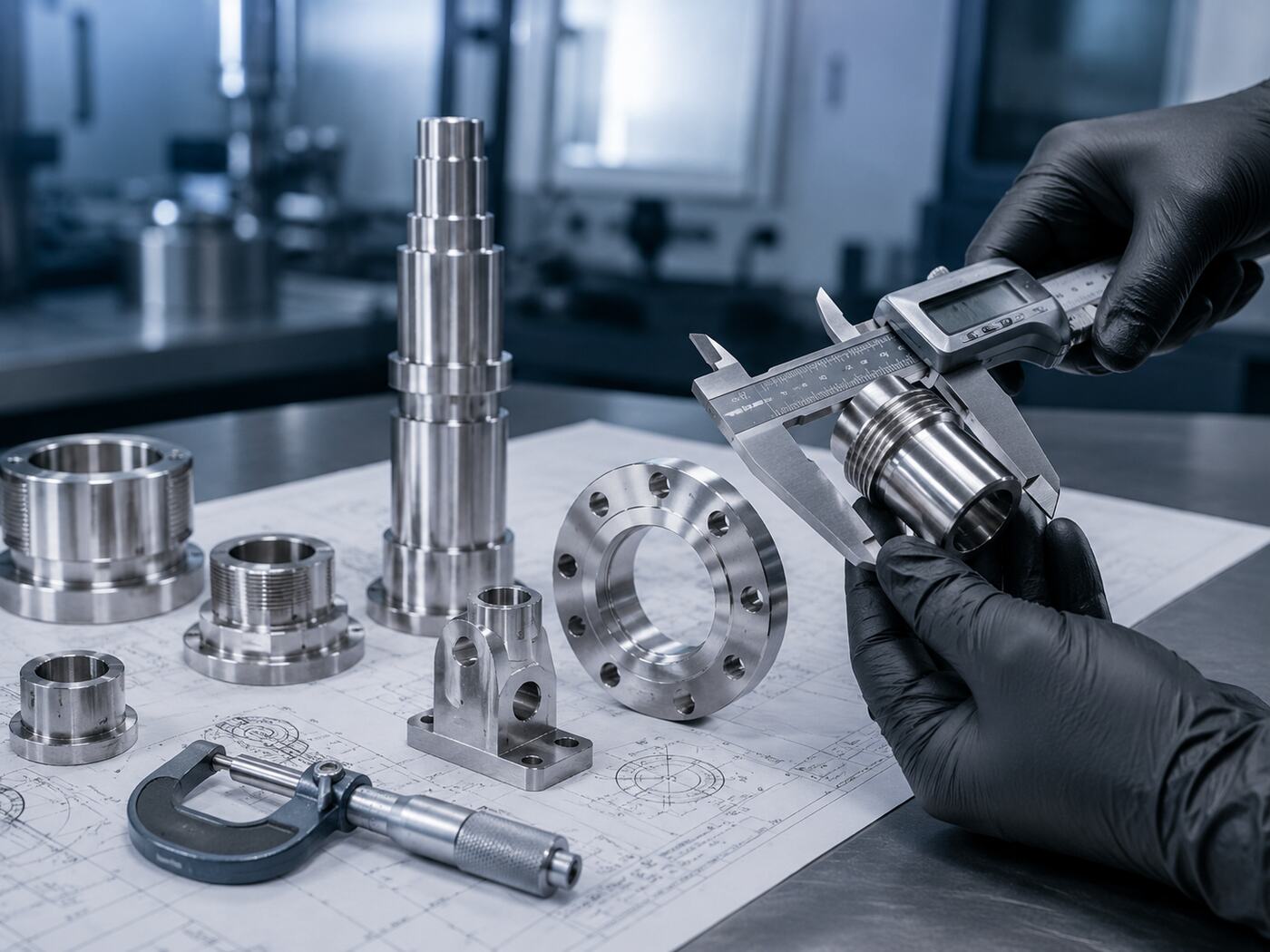

Quality Check Before Shipment
- Dimension inspection according to drawings and critical functional requirements.
- Thread, hole, fit, assembly surface and appearance checking when required.
- Surface treatment, burr, chamfer, visible finish and packing confirmation before shipment.
- Material, quantity and product specification confirmation according to order requirements.
- Inspection photos or basic measurement records can be provided when requested before shipment.
What to Send for Quotation
- 2D drawing, 3D model, physical sample or clear photos with marked dimensions.
- Material grade, surface treatment, tolerance and key functional requirements.
- Estimated quantity, target delivery time and destination country.
- Application environment, assembly position or matching part information if available.
Frequently Asked Questions
Can you quote from samples or drawings?
Yes. We can review physical samples, 2D drawings, 3D CAD files or dimensioned photos before quotation.
Do you support small-batch orders?
Yes. We can support prototypes, trial samples, repair parts and small-batch custom production.
Can you help improve manufacturability?
Yes. We can review material, tolerance, process, structure and surface treatment to reduce unnecessary production risk.
What affects the quotation most?
Material, structure, tolerance, machining time, surface finish, quantity, inspection requirements and delivery time are the main factors.
Need Sample-Based Customization?
Send us drawings, samples or technical requirements. We will review the structure, material, process, tolerance and quantity before providing a practical quotation.
Send Drawing for Quote
